Agentic Workflows for Developer Automation: Practical Patterns with TypeScript

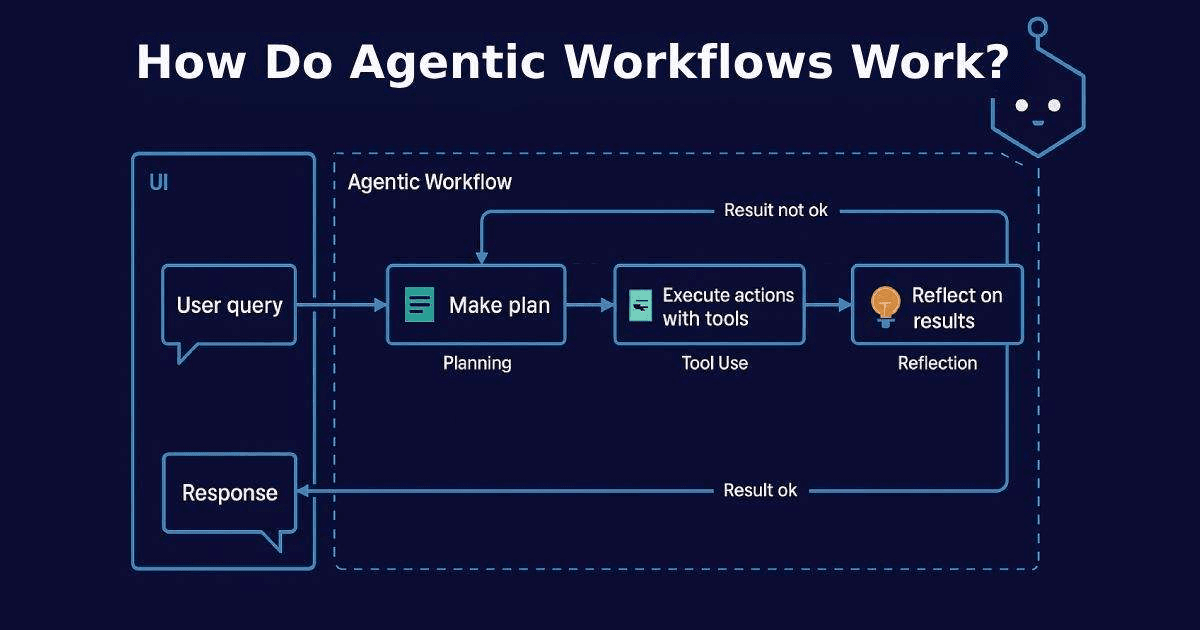

User Goal → Planner → Tool Selection → Action → Observation → (loop) → Report/PR

Tools: repo search, code edit, run tests, create branch/PR, fetch docs/metrics
State: current goal, scratchpad, observations, constraint checklist
Guardrails: policy checks, rate limits, human-in-the-loop approvals

// lib/agent/loop.ts
type Tool = {
  name: string;
  description: string;
  call: (args: Record<string, any>) => Promise<{ output: string; artifacts?: Record<string, any> }>;
};

type Step = { thought: string; tool?: string; args?: Record<string, any>; observation?: string };

export const runAgent = async ({ goal, tools, maxSteps = 12, emit }: {
  goal: string;
  tools: Tool[];
  maxSteps?: number;
  emit?: (event: any) => void;
}) => {
  const log = (e: any) => emit?.(e);
  const scratch: Step[] = [];

  for (let i = 0; i < maxSteps; i++) {
    // naive planner (replace with LLM planner)
    const stepPlan = i === 0
      ? { thought: `Plan: understand goal → choose tool`, tool: tools[0]?.name }
      : { thought: `Iterate based on observation`, tool: tools[0]?.name };

    log({ type: "plan", step: i + 1, plan: stepPlan });

    const tool = tools.find((t) => t.name === stepPlan.tool);
    if (!tool) {
      scratch.push({ thought: stepPlan.thought });
      break;
    }

    const args = { query: goal };
    const result = await tool.call(args);
    scratch.push({ thought: stepPlan.thought, tool: tool.name, args, observation: result.output });
    log({ type: "observation", step: i + 1, output: result.output });

    if (result.output.includes("DONE")) break;
  }

  return { steps: scratch };
};

// lib/agent/tools.ts
import fs from "node:fs/promises";

export const searchRepo = {
  name: "searchRepo",
  description: "Search the repository for a string",
  call: async ({ query }: { query: string }) => {
    // naive placeholder search
    return { output: `Searched for: ${query}. DONE` };
  },
};

export const createFile = {
  name: "createFile",
  description: "Create a file with content",
  call: async ({ path, content }: { path: string; content: string }) => {
    await fs.writeFile(path, content, "utf8");
    return { output: `File created at ${path}` };
  },
};

// app/api/agent/route.ts
import { NextRequest } from "next/server";
import { runAgent } from "@/lib/agent/loop";
import { searchRepo } from "@/lib/agent/tools";

export const POST = async (req: NextRequest) => {
  const { goal } = (await req.json()) as { goal?: string };
  if (!goal) return new Response("Missing goal", { status: 400 });

  const stream = new ReadableStream<Uint8Array>({
    start: async (controller) => {
      const enc = new TextEncoder();
      const emit = (e: any) => controller.enqueue(enc.encode(`data: ${JSON.stringify(e)}\n\n`));
      try {
        const result = await runAgent({ goal, tools: [searchRepo], emit });
        emit({ type: "final", result });
        controller.enqueue(enc.encode(`data: ${JSON.stringify({ done: true })}\n\n`));
      } catch (e: any) {
        emit({ type: "error", message: e?.message || "error" });
      } finally {
        controller.close();
      }
    },
  });
  return new Response(stream, { headers: { "Content-Type": "text/event-stream; charset=utf-8", "Cache-Control": "no-store" } });
};

// components/AgentRunner.tsx
"use client";
import { useCallback, useState } from "react";

export const AgentRunner = () => {
  const [goal, setGoal] = useState("");
  const [logs, setLogs] = useState<string[]>([]);

  const run = useCallback(async () => {
    setLogs([]);
    const res = await fetch("/api/agent", { method: "POST", headers: { "Content-Type": "application/json" }, body: JSON.stringify({ goal }) });
    const reader = res.body?.getReader();
    if (!reader) return;
    const dec = new TextDecoder();
    while (true) {
      const { done, value } = await reader.read();
      if (done) break;
      for (const line of dec.decode(value).split("\n\n")) {
        if (!line.startsWith("data:")) continue;
        setLogs((prev) => [...prev, line.slice(5)]);
      }
    }
  }, [goal]);

  return (
    <div className="space-y-3">
      <div className="flex gap-2">
        <input className="flex-1 rounded border px-3 py-2" value={goal} onChange={(e) => setGoal(e.target.value)} placeholder="E.g., add CI badge to README" />
        <button className="rounded bg-black px-3 py-2 text-white disabled:opacity-50" onClick={run} disabled={!goal}>Run</button>
      </div>
      <pre className="rounded border p-3 whitespace-pre-wrap text-sm">{logs.join("\n")}</pre>
    </div>
  );
};
